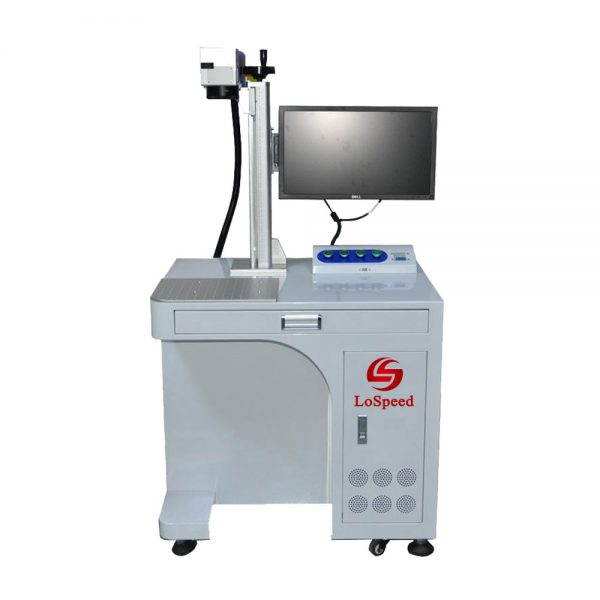

LS-YLP-30J

30W, 1064nm Fiber Laser Marking Machine with JPT Laser Source

Key Specifications
Max Output Power (W) 30
Wavelength (um) 1.064
Repetition Rate (KHz) 20 to 100
Engraving Speed 7000mm per second
Host Size (mm) 800 x 650 x 1400

Share this product

Product Application

Fiber laser marking machines are widely used in mobile power/charger, mobile phone shell/button, tablets, electronic components, integrated circuits, rings, bracelets, cables and wires, electric equipment, mugs, glasses, watches, key, instrument, sanitary ware, stainless steel products, car accessories, medical device industries.

Product Features

  1. Adopting integrated structure with autofocusing technology and intuitive operation design.
  2. High electro-optical conversion efficiency. The total power consumption less than 600W, which is a tenth of lamp-pumped solid laser marking machine, so can greatly save energy.
  3. High marking speed.
  4. Minimum to zero need for maintenance.
  5. Long life.
  6. Small footprint.
  7. Suited for harsh environment.
  8. Powerful marking software that is compatible with files generated from Cold draw, AutoCAD, Photoshop, etc. Supports PLT, PCX, DXF, BMP format; SHX , TTF font can be used directly; it also supports automatic coding, printing serial number, batch number, date, barcode,2D bar code, number jumping automatically, etc.

Detail Specifications

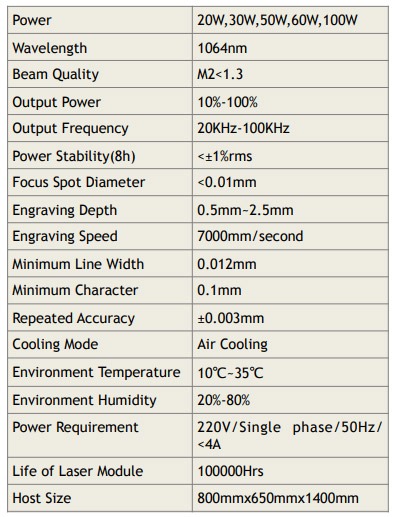

Fiber Laser Marking Machines Specifications

Standard Accessories

  1. A set of Fiber Laser Device
  2. A set of Digital Scanning System
  3. A set of high-speed Scan Lens
  4. 110mm x110mm Fiber Focus Lens
  5. Motion control card + Marking software
  6. A set of industrial computer
  7. A red laser pointer
  8. A pedal switch

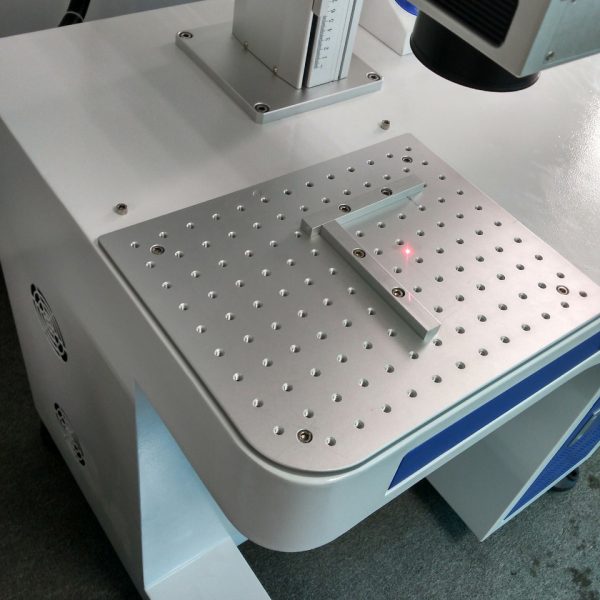

  9. Work table(300mmX300mm or 150mmx250mm)
  10. Laser power supply
  11. Laser equipment cabinet

Optional Accessories

  1. 3D work table
  2. Rotary device
  3. Voltage stabilizer/regulator
  4. UPS
